Anti-Jam Fiber Optic Drone Buckets
Fiber Optic Reel for Drone
High-performance inner-winding fiber optic spool for FPV multi-rotor drones, with 0.23mm high-strength fiber, FC connector, consistent signal performance, compatible with mainstream UAV platforms, full range coverage from 1KM to 60KM.
🏷️ Product Overview

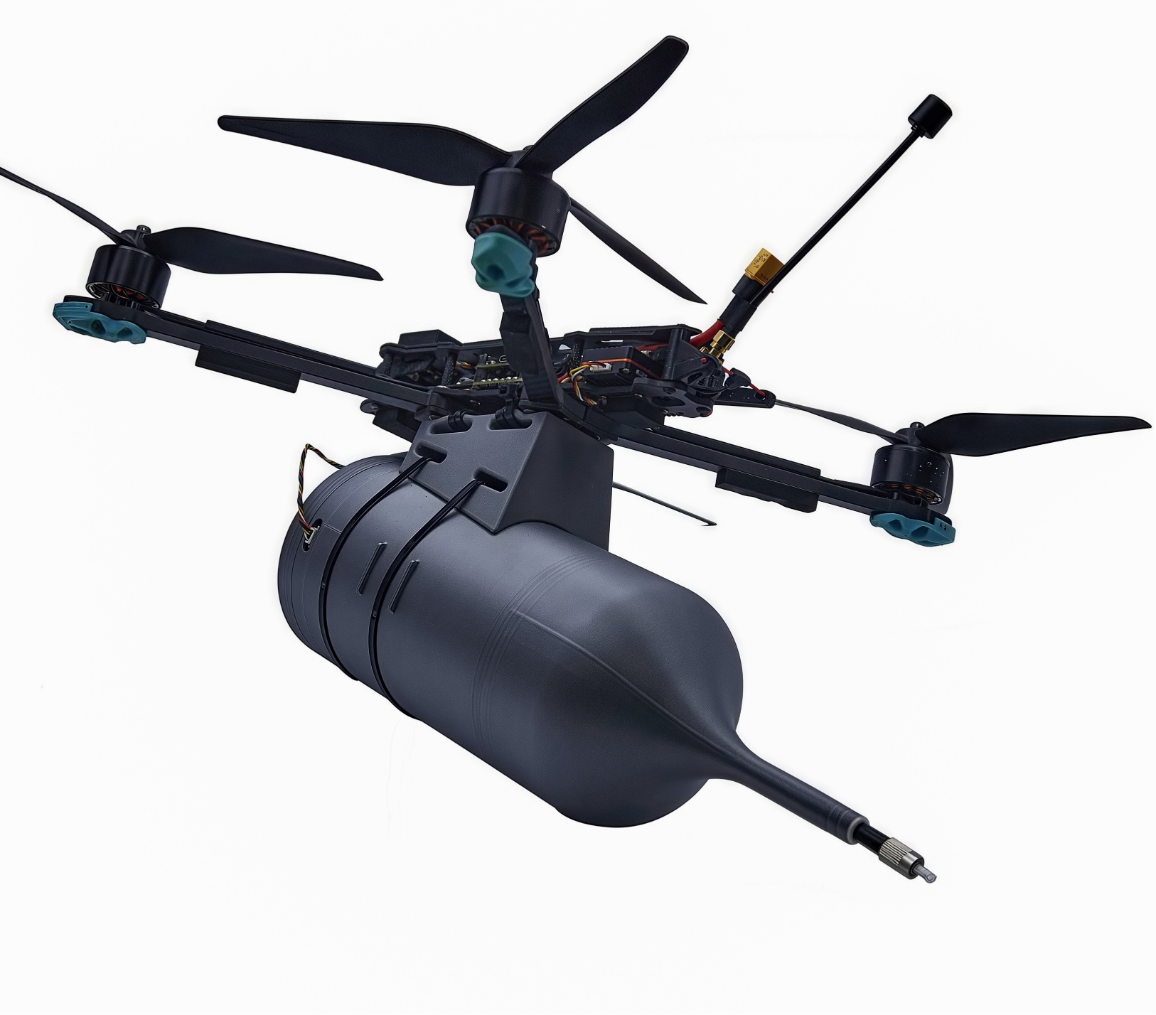

Our FPV Drone Fiber Optic Reel is a high-performance inner-winding communication solution, designed for stable, reliable signal transmission in complex operational environments. With lightweight construction, smooth fiber payout, and plug-and-play integration, it is fully compatible with mainstream FPV multi-rotor drones, with full range coverage from 1KM to 60KM.
✨ Core Features
- Inner Winding Technology: Smooth, tangle-free fiber payout during flight, ensuring consistent performance across all speed ranges
- Lightweight Design: Compact form factor with thin high-strength fiber, minimal impact on drone payload
- Stable Signal Transmission: Continuous real-time control and data transmission, with high resistance to signal interference
- High-Speed Compatibility: Supports variable speed flight, with maximum speed up to 180km/h
- Plug-and-Play Installation: No complex modification required, ready for deployment in minutes
Parameter | Details |
|---|---|
Supported Range | 1KM / 2KM / 3KM / 5KM / 10KM / 15KM / 20KM / 25KM / 30KM / 40KM / 50KM / 60KM |
Fiber Diameter | 0.23 mm |
Fiber Connector Type | FC |
Operating Temperature | -20°C to +60°C |
Compatibility | Mainstream FPV multi-rotor drones |

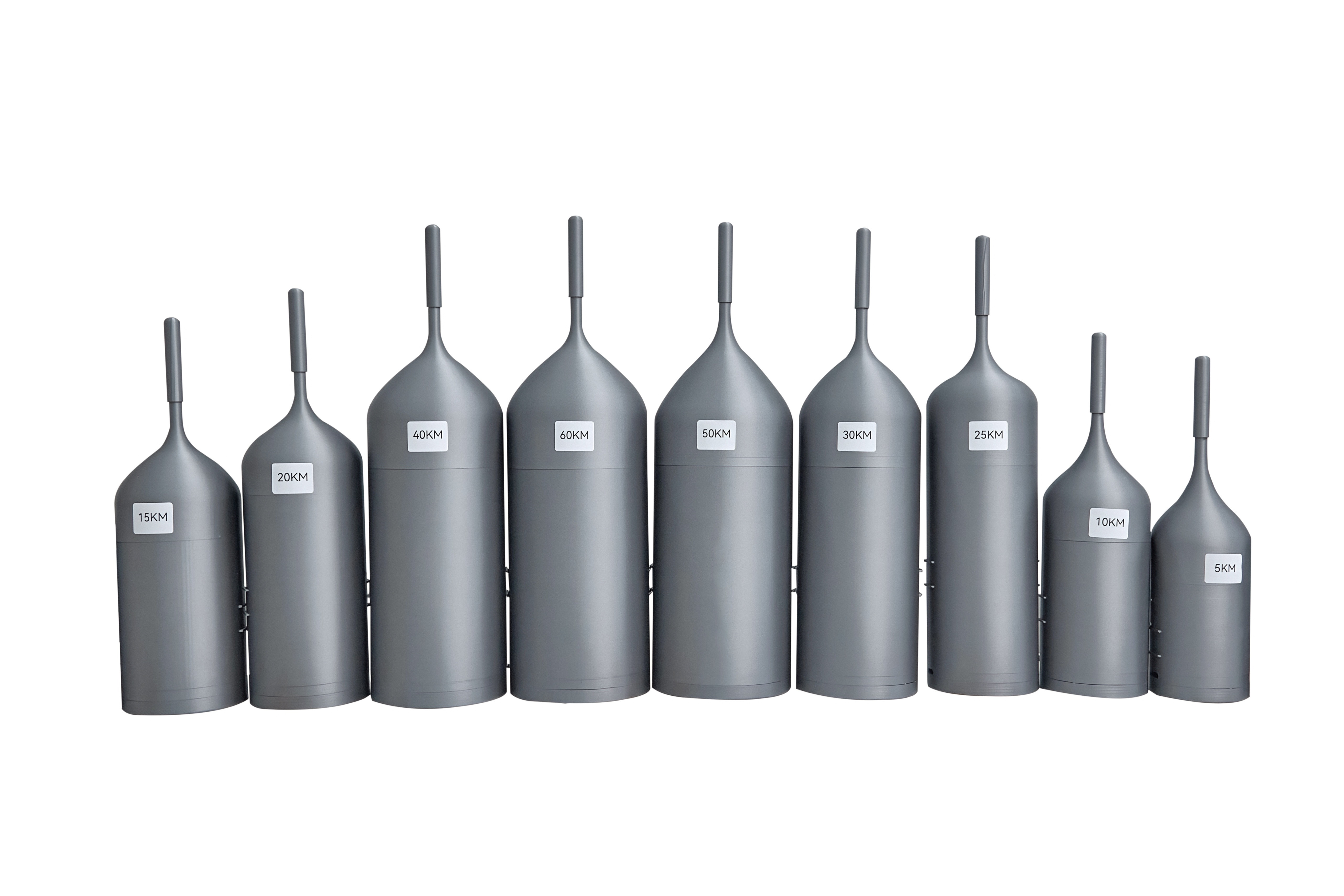

Range Option | Weight | Dimensions (OD * H) | Product Model |
|---|---|---|---|
1KM | 0.21 kg | 77 mm * 240 mm | KN-FPV-OFC001 |
2KM | 0.32 kg | 85 mm * 300 mm | KN-FPV-OFC002 |
3KM | 0.39 kg | 85 mm * 300 mm | KN-FPV-OFC003 |
5KM | 0.58 kg | 99 mm * 310 mm | KN-FPV-OFC005 |
10KM | 0.99 kg | 110 mm * 330 mm | KN-FPV-OFC010 |
15KM | 1.38 kg | 120 mm * 350 mm | KN-FPV-OFC015 |
20KM | 1.78 kg | 120 mm * 380 mm | KN-FPV-OFC020 |
25KM | 2.18 kg | 120 mm * 440 mm | KN-FPV-OFC025 |
30KM | 2.56 kg | 136 mm * 455 mm | KN-FPV-OFC030 |
40KM | 3.02 kg | 146 mm * 455 mm | KN-FPV-OFC040 |
50KM | 4.18 kg | 151 mm * 455 mm | KN-FPV-OFC050 |
60KM | 4.86 kg | 161 mm * 455 mm | KN-FPV-OFC060 |
